More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

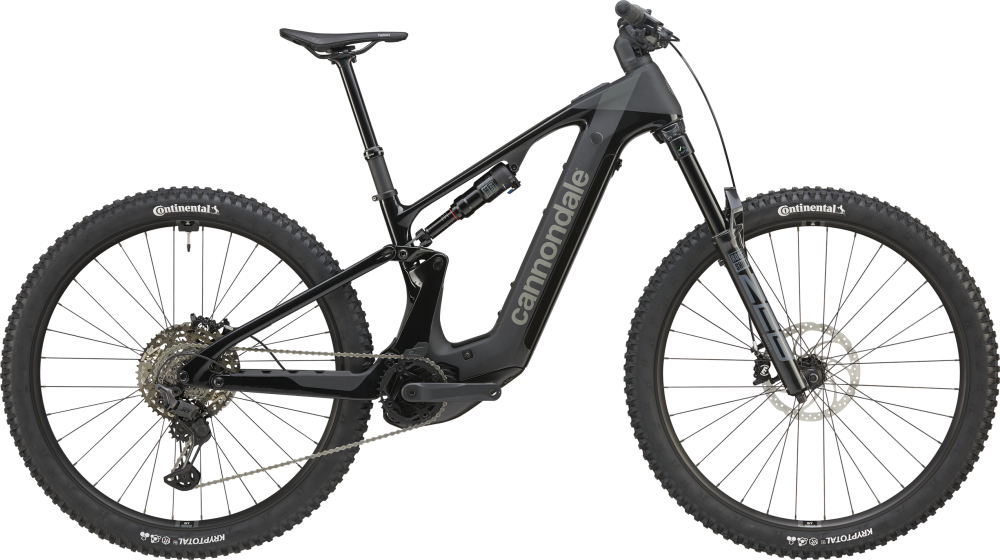

A masterclass in capability. The Moterra 2 features a new, lightweight, full carbon frame with 150mm travel and a hard-charging 160mm RockShox Zeb Select fork for pinpoint handling. A blended Shimano XT/CUES U8000 drivetrain and Magura MT5 brakes combine with Bosch’s most powerful CX motor and 800Wh battery to extend every ride beyond expectation. Agile, composed, and ever-ready to push the limits of exploration.

Highlights
A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
Smooth and rugged RockShox suspension – 160mm ZEB Select 38 fork and Deluxe Select+ air shock
Light and durable WTB ST i30 Tough rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
Flawless shifting from Shimano’s high-end XT / CUES U8000 LinkGlide blended drivetrain
Powerful, controllable stopping from Magura’s MT5 4-piston stoppers with 203mm rotors

Batterie: Bosch PowerTube, 800Wh
Ladegerät: Bosch 4A
Display: Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote
Motor: Bosch Performance Line CX
Extras: Bosch PowerMore range extender compatible
Rahmen: Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
Kurbelsatz: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Gabel: RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset
Kette: Shimano LG500, LinkGlide, 11-speed
Bremsen: Magura MT5 4-piston hydraulic disc, 203mm Storm rotors
Bremshebel: Magura MT5 hydraulic disc
Umwerfer hinten: Shimano XT M8130, LinkGlide
Kassette: Shimano CUES LG700, LinkGlide, 11-50, 11-speed
Dämpfer: RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm
Lenker: Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Steuersatz: Acros ICR, 1.5" to 1.8", sealed bearings
Griffe: Cannondale TaperRidge
Nabe: (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Pedale: Not Included
Reifen: (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Felgen: WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible
Speichen: DT Swiss Champion 2.0
Schalthebel: Shimano CUES U8000, 11-speed, LinkGlide
Sattel: Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Sattelstütze: Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Lenkervorbau: Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
